Sinker EDM, also known as RAM EDM or Electrical Discharge Machining, is a process used to machine conductive materials through controlled electrical discharges between an electrode and the workpiece. This method is applied when traditional cutting tools cannot achieve the required internal geometry or material hardness conditions.
This capability is used for parts requiring tight tolerances, repeatable features, and controlled surface finishes. It is commonly applied in aerospace, defense, medical, and precision industrial components where conventional machining reaches limits in geometry or material condition.
Sinker EDM AND ELECTRODE-DRIVEN MACHINING
Sinker EDM operates through a shaped electrode that is positioned into the workpiece under controlled conditions. The electrode shape directly defines the final cavity or feature.
RS Precision supports:
- Custom electrodes for specific part geometry
- Complex patterns and repeating patterns for production tooling
- Tight control of electrode wear and dimensional stability
- High repeatability for multi-cavity and matched features
Electrode design plays a direct role in part accuracy. The precision of electrodes and the ability to machine fine or complex electrode shapes supports consistent results across repeated runs. This is critical for tooling, dies, and components with mirrored or repeated geometry.
SINKER EDM CAPABILITIES AND APPLICATIONS
Sinker EDM services at RS Precision are applied to internal features that cannot be reached with standard CNC tooling. This includes blind cavities, deep ribs, sharp internal corners, and hardened material sections.
Typical capabilities include:
- Internal cavity machining with controlled geometry
- Sharp corner formation without tool radius limits
- Deep pocketing in hardened steels and alloys
- Complex configurations requiring multi-step EDM burns
Electrical discharge machining is used as the method of choice when material hardness or internal geometry prevents mechanical cutting. EDM provides controlled material removal without cutting force, allowing stable machining of hardened and heat-treated parts.

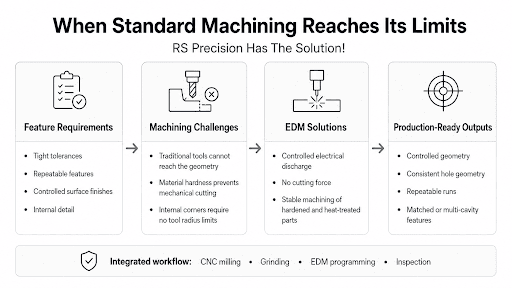

EDM is the solution you are searching for when standard machining cannot complete the feature set.
MICRO EDM SERVICES
Micro EDM is used for very small-scale machining where standard EDM electrodes and tools are too large for the feature size.
RS Precision applies Micro EDM for:
- Small, precise holes and fine internal features
- Miniature cavities in compact components
- High-detail features in medical and aerospace parts
Micro EDM supports fine work where accuracy and repeatability matter at reduced scale. It is used when part geometry requires controlled removal at micro-level dimensions, especially in materials that are already hardened or sensitive to machining stress.
FAST HOLE EDM AND HOLE POPPER SERVICES
Fast hole EDM, also referred to as hole popper EDM, is used for producing deep, straight holes with high aspect ratios. The process uses a tubular electrode that rapidly penetrates the material through controlled electrical discharge.
This method is applied for:
- High aspect ratio holes (length-to-diameter requirements)
- Cooling channels in turbine and aerospace components
- Start holes for wire EDM operations
Fast hole EDM delivers clean, consistent hole geometry. It is not as fast as laser drilling, but it produces better surface quality and more stable hole accuracy, especially in hard metals. Hole popper EDM is commonly used as a preparation step for wire EDM, allowing accurate entry points and controlled drilling through thick or hardened sections.
WHY RS PRECISION FOR SINKER EDM WORK?
RS Precision integrates sinker EDM into a broader machining workflow that includes CNC milling, grinding, and inspection processes. This allows parts to move through multiple operations without losing alignment or tolerance control.
Key advantages include:
- In-house electrode manufacturing and EDM programming
- Capability for complex configurations and tight tolerance work
- Experience with hardened alloys and difficult materials
- Support for repeat production runs and consistent geometry

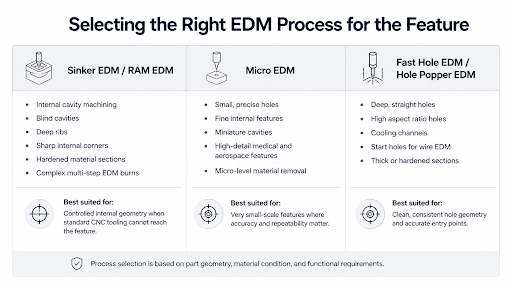

Sinker EDM services, micro EDM, and fast hole EDM are applied based on part geometry, material condition, and functional requirements. Each process is selected to match the feature requirements of the component without compromise on accuracy or repeatability.
For components that require internal detail, controlled geometry, or high aspect ratio drilling, RS Precision provides EDM processes built for production readiness and consistent output. Request a quote for sinker EDM services from RS Precision Industries and get precision machining support for complex geometries, tight tolerances, and production-ready components.
